Swing Gates Sub-Terrain Motors

The Ultimate Choice

Selecting and installing a gate automation system on a DIY basis may leave the system performing at way below its optimum level

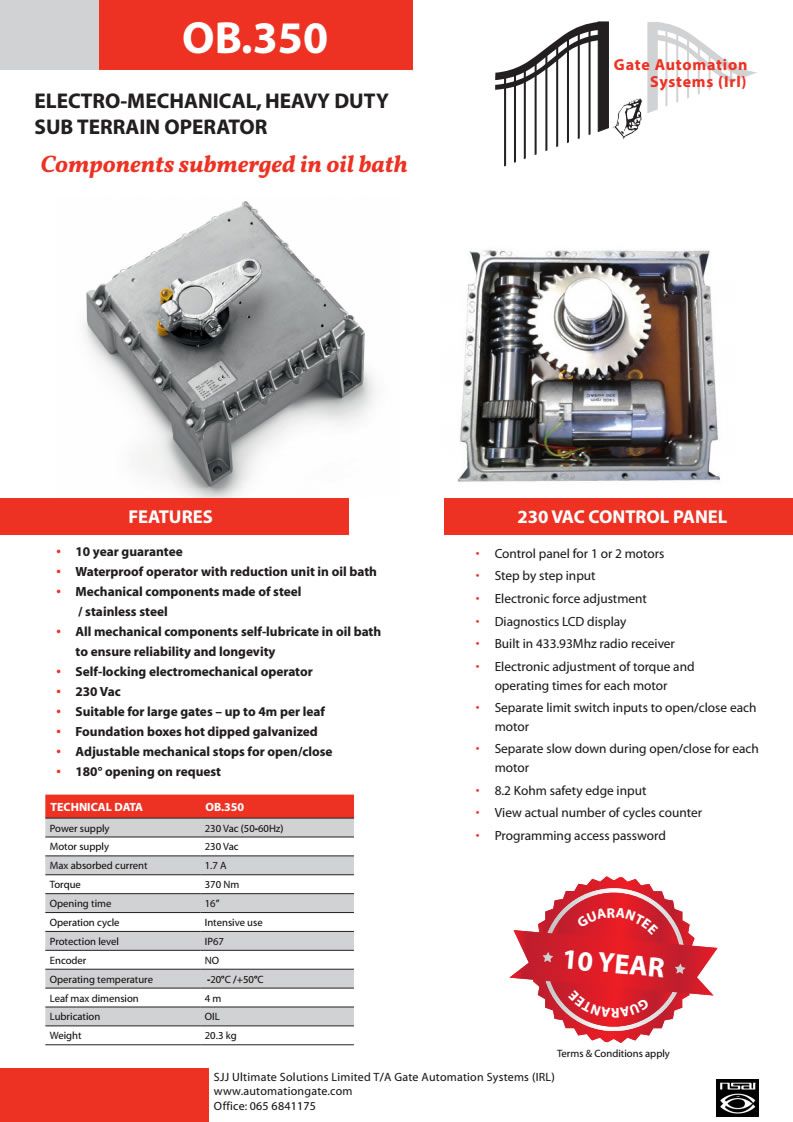

Features / Benefits:

Suitable for swing gates up to 4m

Self locking electromechanical motors

Standard or fast speed

Water-proof motor

Reduction unit submerged in oil bath to assure long life

Reliable and strong reduction unit with all mechanical components made of stainless steel

Hot dipped galvanized or stainless steel foundation boxes

Adjustable mechanical stops

Strong and fast indoor and outdoor unlock device

Get in Touch

Information on Sub Terrain Motors

Gate Automation Systems (Irl) would like to draw your attention to some basic differences in residential sub terrain motors for automatic gates. The images in this document show the difference between a standard sub terrain motor and the more superior oil bath motor.

What is an oil bath motor?

With the more superior type motor all internal mechanical components (motor and reduction gear) are constructed from high grade stainless steel and are submerged in an oil bath to ensure long life of the system. This oil bath also protects the components from moisture and freezing. Because all the components are submerged, each time the gate drive unit moves it self lubricates the complete system and minimises operation fatigue. These sub terrain motors are built for high performance, durability and longevity.

Motor in Oil Baths

residential-sub-terrain-motors-motors-in-oil-bath-1

residential-sub-terrain-motors-motors-in-oil-bath-2

As you can see from the images of the typical standard motor, the internal parts are made of cast iron type material and are lubricated with semi fluid grease. In the short term this grease breaks down and the internal parts run dry causing numerous ongoing problems such as bearings ceasing up, wearing down of drive gear and burning out of the motor. Access to all components in this type of motor is via the underside of the motor. This sits on floor of the foundation box and should rainwater get into the box it will also get into the motor and other components.
