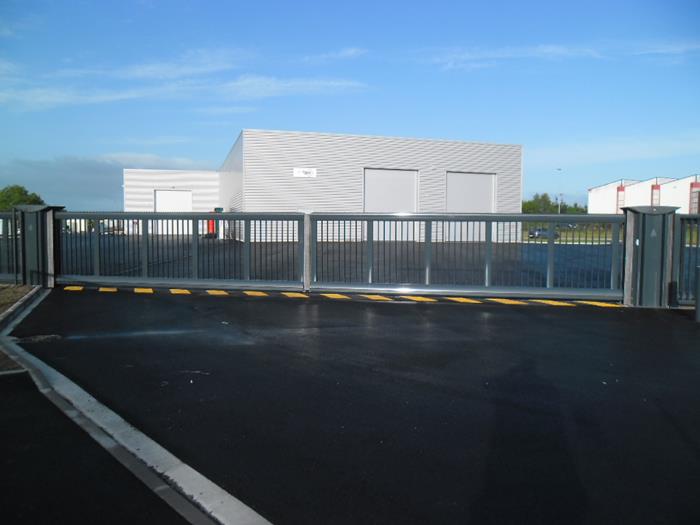

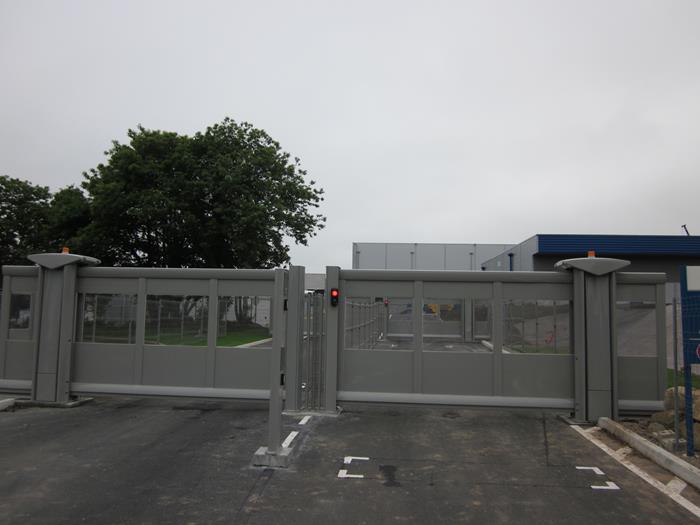

Cantilever Sliding Gates

The Ultimate Choice

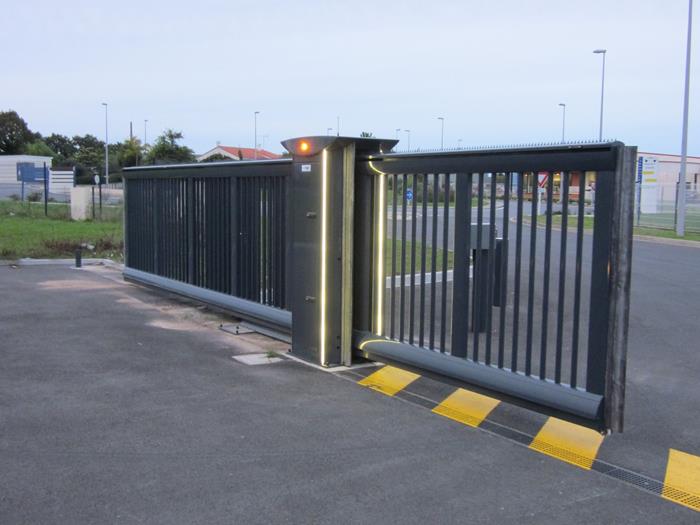

The box section guide post is made from aluminium sheet metal profile and composites installed onto a pre-cut plate. It has a full height door secured by a European ½ lock which offers discreet and aesthetic integration of control accessories without any visible cables. It also incorporates control accessories – access control, CPU, interphone, etc. This post is particularly convenient for the maintenance technicians who can work without having to bend over.

Cantilever sliding gates have industrial three phase motors with reduction gear which has power adjusted to the size of each gate. Adjustment of the cycles to within a centimetre is provide by an encoder built into the motors compensating the travel end sensors. The motor reduction unit can be disengaged easily in the event of a power cut. The drive consists of pinion gear and a chain system mounted on tensioners. The maximum speed of translation can be adjusted up to 50cm/s guaranteeing high performance access control.

Features / Benefits:

Cantilever sliding gates are suitable for areas where operational safety and security have priority

No ground track is required for cantilever gates

The complete roll system is integrated in the under beam which guarantees an extreme security of functioning and safety

Cantilever sliding gates are approx 1/3 longer than tracked gates – the extra length acts as a counterbalance to allow the gate to the gate slide back and forward

The gate is supported during the entire opening / closing cycle by roller wheels within the bottom beam/profile

The topside guiding roller wheels are protected from weather inside the top profile

There is a slam post assembly at one end and stops at the other end

The gate is held upright by a guide rail and roller located in the guide post
